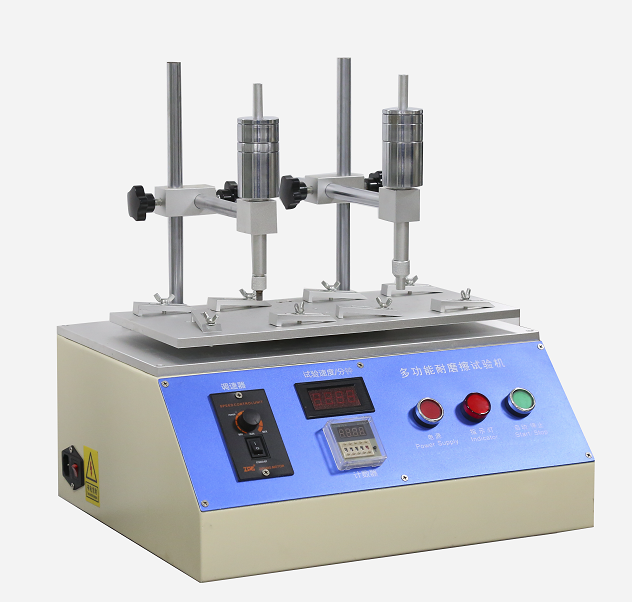

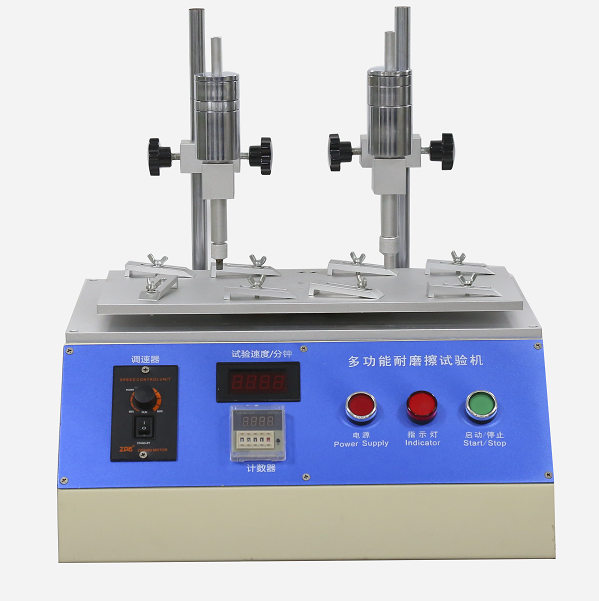

Multifunction abrasion testing machine

Multifunction abrasion testing machine

Brand: PENGJIE

Model: PJ-DT007

Description of Production：

It applies to all types of surface coating products and typographical abrasion life test. With adjustable speed and visual display of speed tests, but can be set to the number of tests, test results are accurate, the operation is simple.

Specifications

l Model: ZJ-9600 type

l Maximum stroke: 0-50mm adjustable

l Speed: 1-60 times / min adjustable

l Friction Hammer: rubber, alcohol, pencils different fixture, another random with weights

l Counter: Maximum count 9999 times

l Total power: 30W

l Power: AC220V 50 / 60HZ

l Dimensions: 450 * 380 * 460mm (L * W * H)

Precautions：

Make sure that the machine in a dry, corrosive environments

Should be placed in a horizontal work surface (machine base at the factory over the horizontal correction)

Power outlet must be a reliable ground wire
