Furnace temperature tracker
Product Details

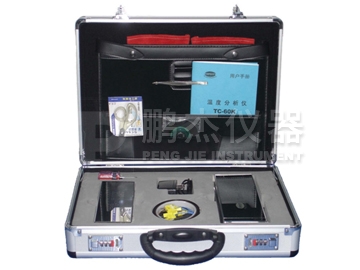

Furnace temperature tracker
Brand: PENGJIE
Model: PJ-TCK-2000
Description of Production：
The product is suitable for electronic SMT / DIP processing, solar energy sintering and curing, Dacromet and Jumite coating, household appliance non-stick coating, plastic UV baking paint, epoxy resin curing, motor dripping paint curing, automotive coating, color coating board Drying and curing, enamel sintering, aluminum alloy heat treatment, glass tempering annealing, metal powder spraying, copper and aluminum brazing and other industries.
Technical Parameters：
|
Types: |
TCK2000 |
|
Dimensions: |
135×80×19mm |
|
Insulation boxes’ dimensions: |
280×120×45mm |
|
Test channel number: |
1--9 CH |
|
Thermocouple: |
K-type thermocouple |
|
Sampling interval: |
0.05sec---600sec Set with software |
|
Record data: |
80000 point/channel, Can record 20 sets profile |
|
Resolution: |
0.1℃ |
|
Temperature measuring range： |
0---1000℃ |
|
Temperature measuring accuracy: |
±(0.1%+1℃) |
|
Operating voltage: |
3.6VDC, rechargeable battery |
|
Total power: |
120mW |
|
Connection mode: |
USB/RS-232/RF |
|
Software version: |
Banking-Profiling V1. 2 |
Duration at High Temperature of the Thermal profiler in Combination of the Protection Box
|
Temp (Convection hot air): |
100℃ |
150℃ |
200℃ |
300℃ |
400℃ |
|
Duration： |
55min |
32min |
22min |
10min |
6min |
System Requirements：
Operating system: Windows 9x / me / 2000 / XP
Disc space: 50M or more
Memory: 64M or more
Display requirement: 800*600 / 256 colors or more
Communication requirement: one spare RS-232 serial port or USB port
Driver: 4x or higher CD-ROM drive
