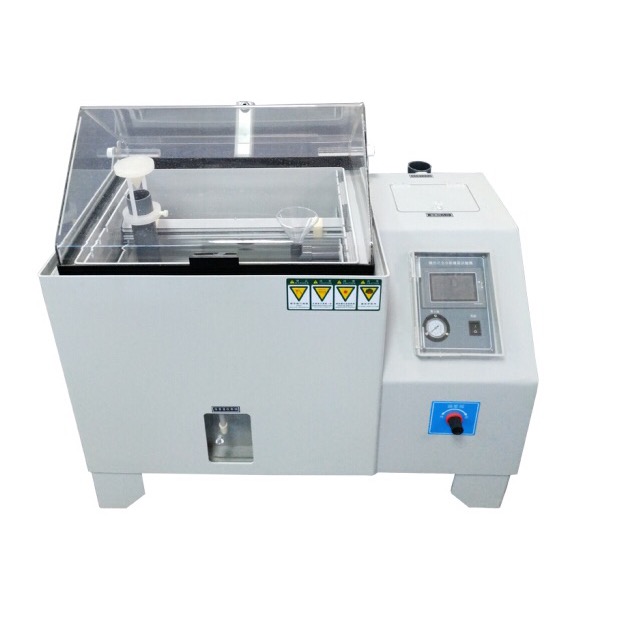

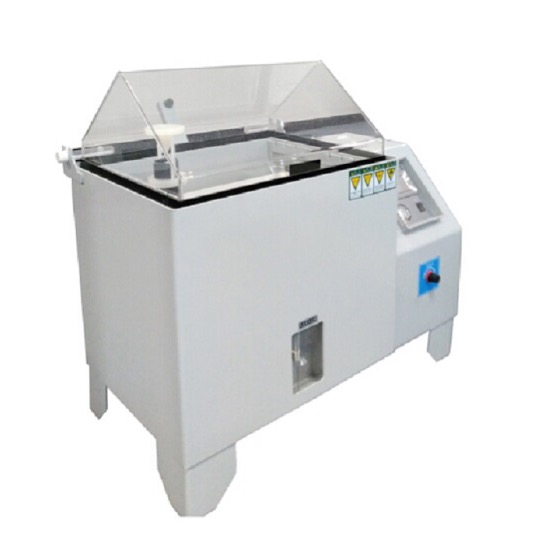

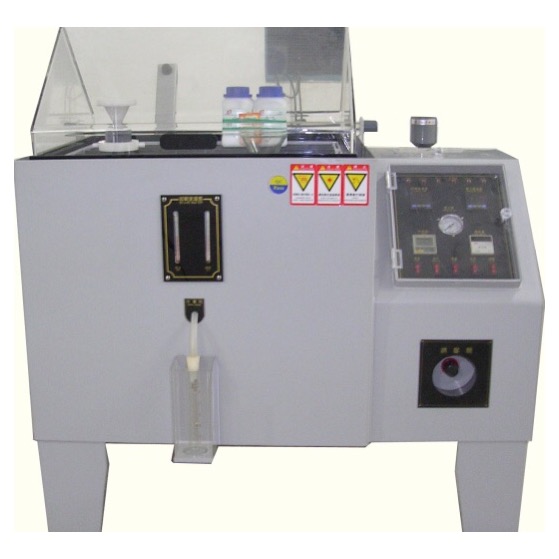

Brine spray tester
Product Details
Brine spray tester
Brand:PENGJIE
Model:PJ-JK-90
Description of Production:
1. The whole PVC board system adopts advanced three-dimensional reinforcement technology, which has strong structure and never deforms.
2. Automatic / manual water system, can have automatic / manual supplement water level of functionality, testing is not interrupted when the water level is insufficient
3. Precision glass nozzle, use 4000 hours to ensure no crystal blockage.
4. The control instruments are all on the same board, which is easy to operate and clear at a glance.
5. With double over-temperature protection, the water level is insufficient to ensure the safety of use.
6. Inlet temperature controller, digital display, PID control, high stability of platinum temperature probe, error 0.3.
7. The test room adopts the steam direct heating method, the rising temperature is fast and the standby time is short.
8. The spray tower is equipped with a cone disperser, with guiding mist, adjusting the amount of mist, and even fogging.
|
Specifications |
PJ-JK-120 |
PJ-JK-100 |
PJ-JK-90 |
PJ-JK-70 |
PJ-JK-60 |
|
Internal dimensions CM (Length × Width × Height) |
120×100×50 |
100×70×50 |
90×60×50 |
70×50×40 |
60×45×40 |
|
Laboratory temperature |
NSS ACSS 35℃±1℃/CASS50℃±1℃ |
||||
|
Pressure barrel temperature |
NSS ACSS47℃±1℃/CASS63℃±1℃ |
||||
|
Power |
AC220V1 φ45A |
AC200V1 φ35A |
AC220V1 φ30A |
AC220V1 φ25A |
AC220V1 φ20A |
|
Laboratory volume |
600L |
350L |
270L |
140L |
108L |
|
Brine volume |
40L |
32L |
25L |
20L |
15L |
