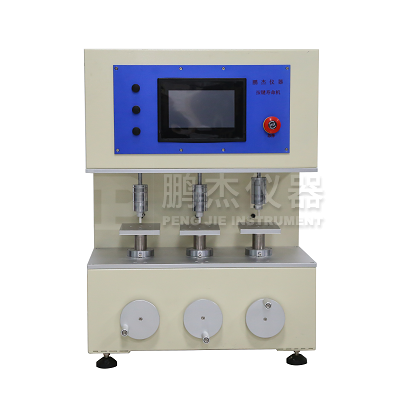

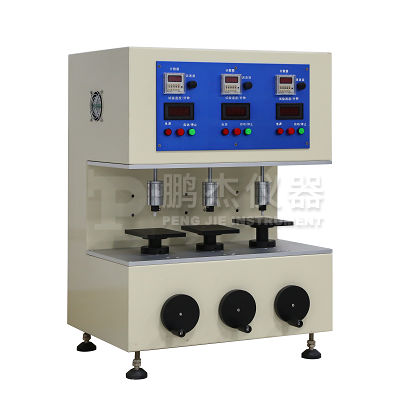

Three-axis key life testing machine
Brand: PENGJIE
Model: PJ-DT-007-A
Description of Production：
This machine can test NATEBOOK(mobile phone, PDA), telephone, computer keyboard, electronic dictionary, pot chip, myla chip, micro switch keys and various buttons, switch durability test. It can work at the same time, work separately, and test several products. Each product can be tested at multiple points.
Each button can be set to different pressure and different height. At the same time using each test head separate control, special fixture design, humanized operation, can meet different customer testing needs.
Specifications:
1. Specification: three stations;
2. Speed test range: 15-100 times/min, (adjustable);
3. The maximum bearing capacity of the test stand is 10KG;
4. Test head load: 50G, 100G, 200G (three sets of weights);
5. Down stroke of receiving platform: 120mm;
6. Effective size of test stand: about 120 x 200mm
7. Impact motion: Motor CAM drive, linear bearing movement, precise positioning and frameless movement;
8. The counting instrument adopts adjustable 7-digit number, 0-999999 times;
9. Voltage: 220V
